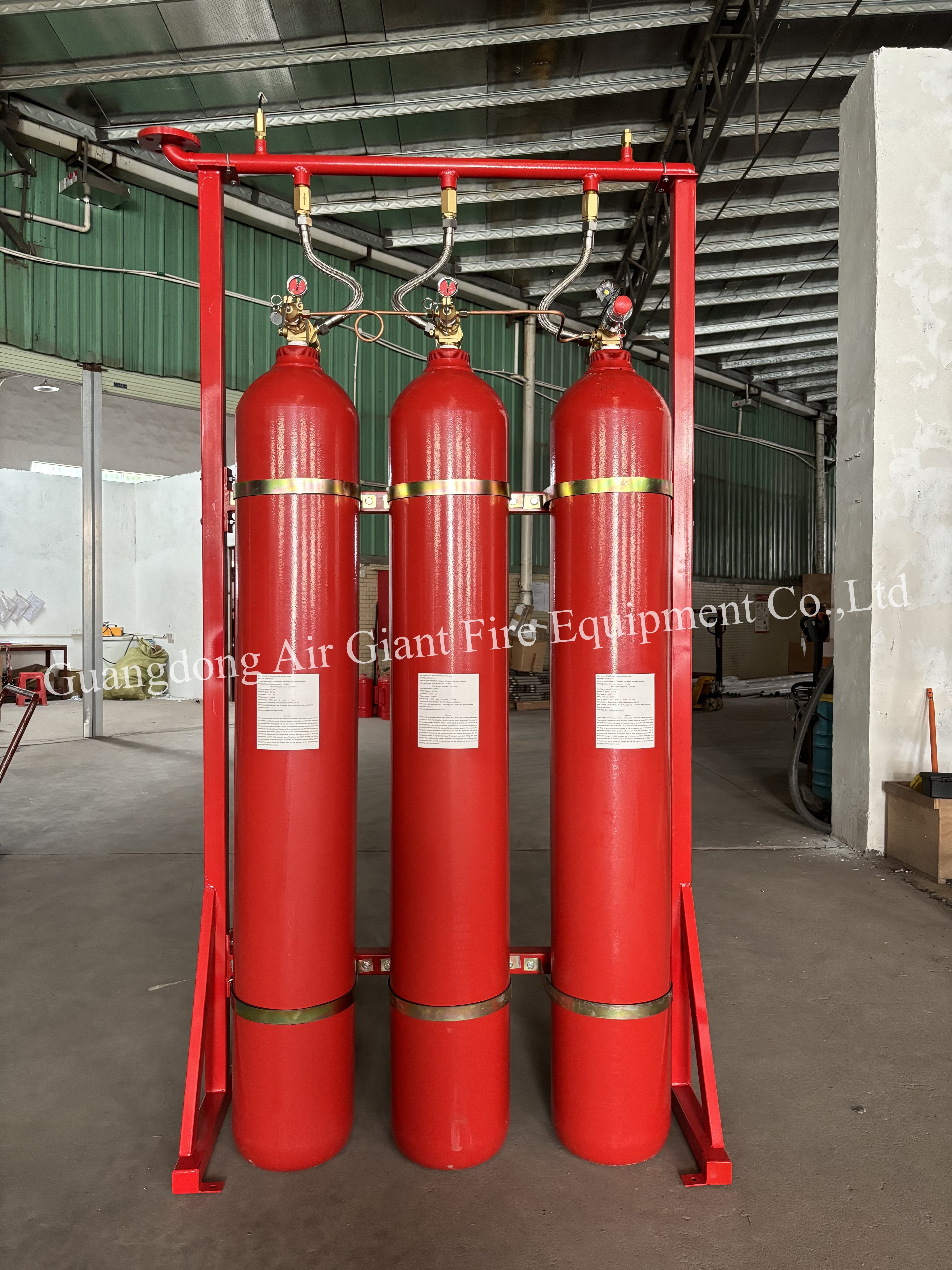

IG55 Clean Agent Suppression System, For Industrial
Description:
When a fire is detected, the IG55 system releases the inert gas mixture into the protected space. The gases quickly disperse, reducing the oxygen concentration to a level where the fire cannot sustain itself. The process is fast, efficient, and leaves no residue, ensuring minimal downtime and no secondary damage.
The IG55 fire extinguishing system is a reliable, sustainable, and effective solution for protecting critical infrastructure and assets from fire hazards. Its unique properties make it a preferred choice for industries where safety, environmental impact, and asset protection are paramount.
Technical parameters of IG55 fire suppression system
|
Working temperature (℃)
|
0℃～+50℃
|
|
Working pressure
|
Storage pressure
|
20.0MPa
|
30.0MPa
|
|
Max. working pressure (+50℃)
|
23.2MPa
|
36.6MPa
|
|
Min. working pressure (-20℃)
|
18MPa
|
27MPa
|
|
Container volume (L)
|
80L
|
140L
|
|
Filling weight (kg, @200 bar)
|
22.32kg
|
39.06kg
|
|
Filling weight (kg, @300 bar)
|
33.48 kg
|
58.59kg
|
|
System operating voltage
|
220V AC,24V DC
|
|
System start mode
|
Electrical automatic, electrical manual, mechanical emergency start
|
|
Design concentration
|
Class A dangerous material surface fire
|
40.3%
|
|
Class B
|
47.6%
|
|
The design concentration of the protective zone with people working
|
40.3%～43%
|
Components:
-
|
1
|
Agent storage cylinder
|
5
|
Container valve
|
9
|
Manifold
|
13
|
Container valve for driving cylinder
|
17
|
Select valve
|
|
2
|
Frame
|
6
|
Flexible hose
|
10
|
Reducing devise
|
14
|
Solenoid actuator
|
18
|
Pressure switch
|
|
3
|
Cylinder clamp
|
7
|
Safety valve
|
11
|
Pilot tube
|
15
|
Relief valve
|
19
|
Nozzle
|
|
4
|
Gas driving actuator
|
8
|
Liquid flow check valve
|
12
|
Driving cylinder
|
16
|
Gas flow check valve
|
|
|
Features:
-- Clean and Non-Residu
-- Environmentally Friendly
-- Safe for Occupants
-- Effective Fire Suppression
-- Non-Conductive
Applications:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Packing and Shipping:
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
