NOVEC1230 Fire Extinguishing System Without Pollution For Museum

NOVEC1230 Fire Extinguishing System Without Pollution For Museum

Description

Perfluorohexanone (Novec1230) is stored in liquid form, but vaporized immediately after being ejected, completely submerged in the protected space. Novec 1230 is a clear, colorless and tasteless detergent and an effective substitute for halon gas. The area where electronic equipment works and irreplaceable high-value assets are located. For example, museums, banks, clean rooms, hospitals, etc., using water as fire extinguishing agent will have the same destructive effect as the fire itself. But Novec 1230 did it.

The ozone depletion potential (ODP) of Novec 1230 is zero, the global warming potential (GWP) is one, and its life in the atmosphere is only five days, which makes Novec 1230 the cleanest and most environmentally friendly chemical fire extinguishing agent at present.

Components

The pipe network model of Novec1230 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.

The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.

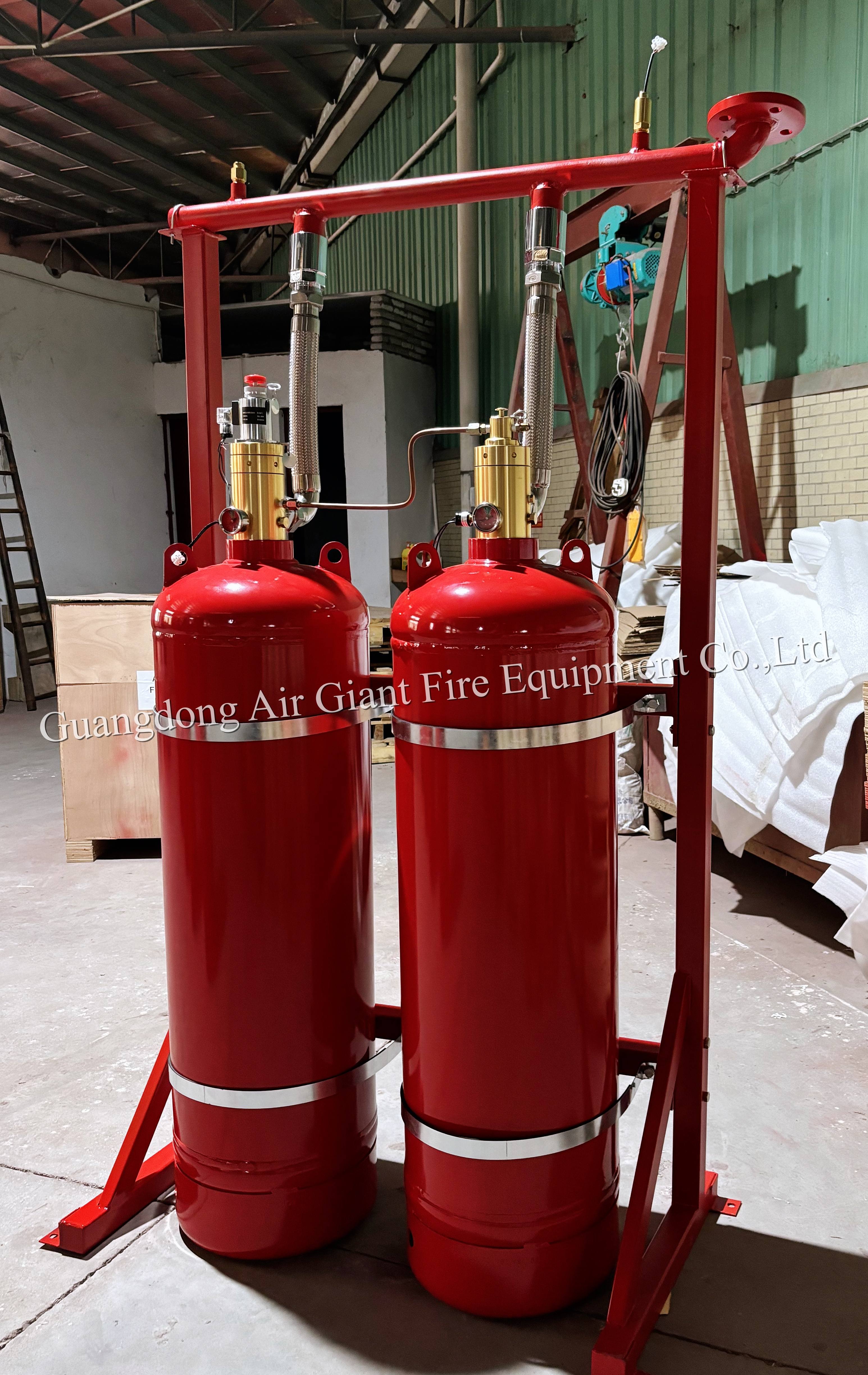

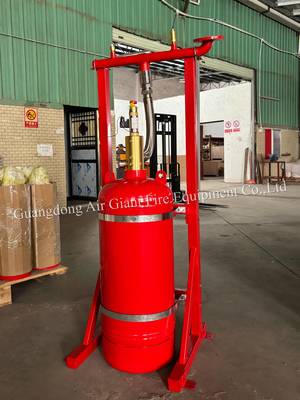

The main part of the system is fire fighting equipment. It is formed by several components: Novec1230 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.

Application


The pipe network type Novec1230 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:

- Telecommunications and data processing

- Switch gear rooms

- Military applications and cell sites

- High-tech medical application

- Computer rooms

- Telecommunication centers

- Records and data archives

- Testing/imaging equipment

- Reference material

- Chemical laboratories


Advantages

This system has a cylinder frame, whose shape is similar to a cabinet, so this system is called cabinet pipe network type Novec1230 fire suppression system. Besides, here is going to list out the advantages of this system.

1. Place saving. This fire suppression system requires a separated room outside the protected zone, and will not occupy the places of the protected zone.

2. Easy installation. A few components and an easy structure make the system install easily.

3. Convenient transportation. Because of a few components and careful package, the transportation will be very convenient and safe.


Packages

We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
